Deployment Patterns

⭐️In a production ML environment, retraining is only half the battle, we must also safely deploy the new version.

Types of deployment (most common):

• Shadow ❏ Deployment
• A/B Testing 🧪
• Canary 🦜 Deployment

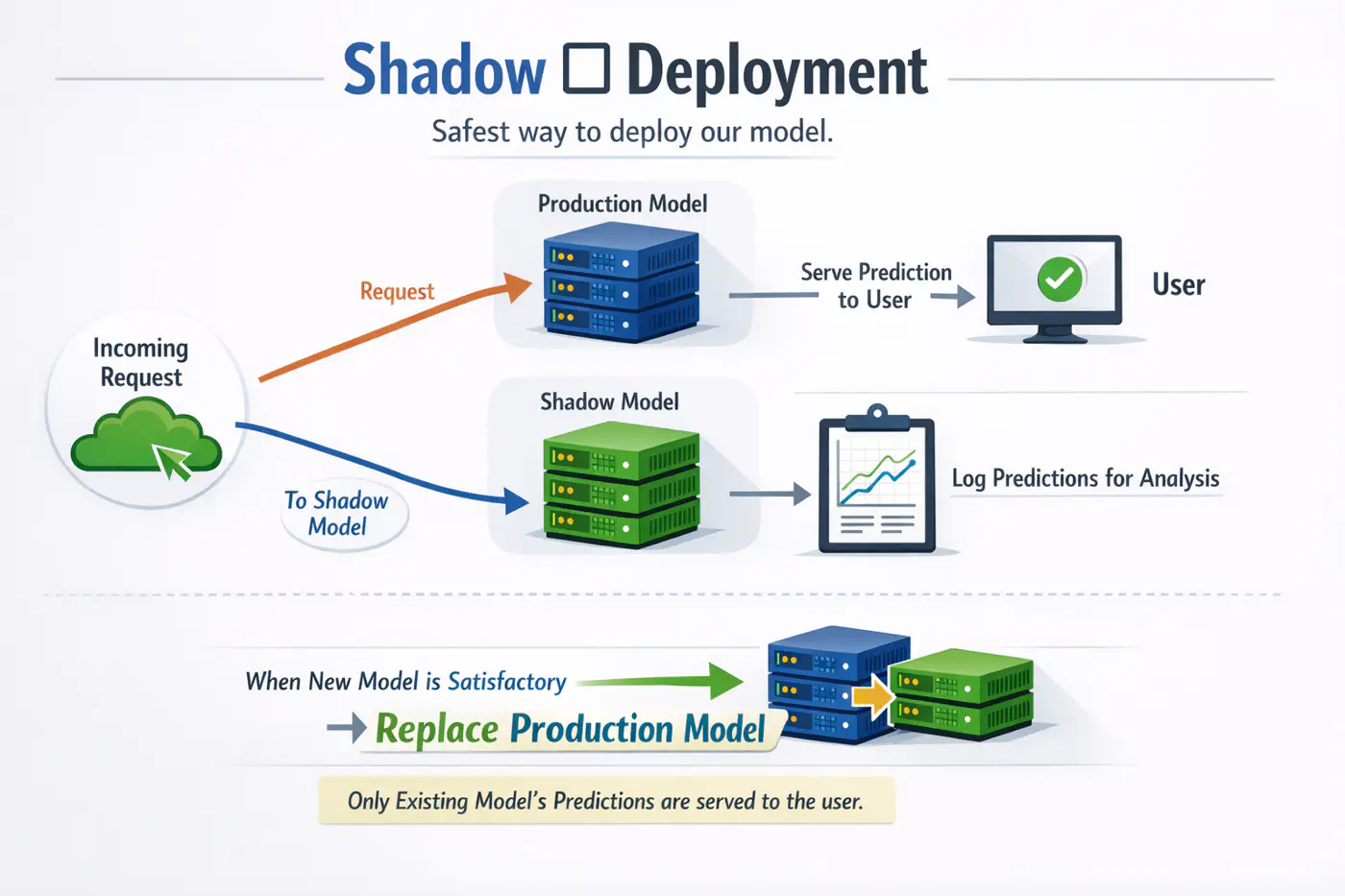

👉 Safest way to deploy our model or any software update.

• Deploy the candidate model in parallel with the existing model.
• For each incoming request, route it to both models to make predictions, but only serve the existing model’s prediction to the user.
• Log the predictions from the new model for analysis purposes.

Note: When the new model’s predictions are satisfactory, we replace the existing model with the new model.

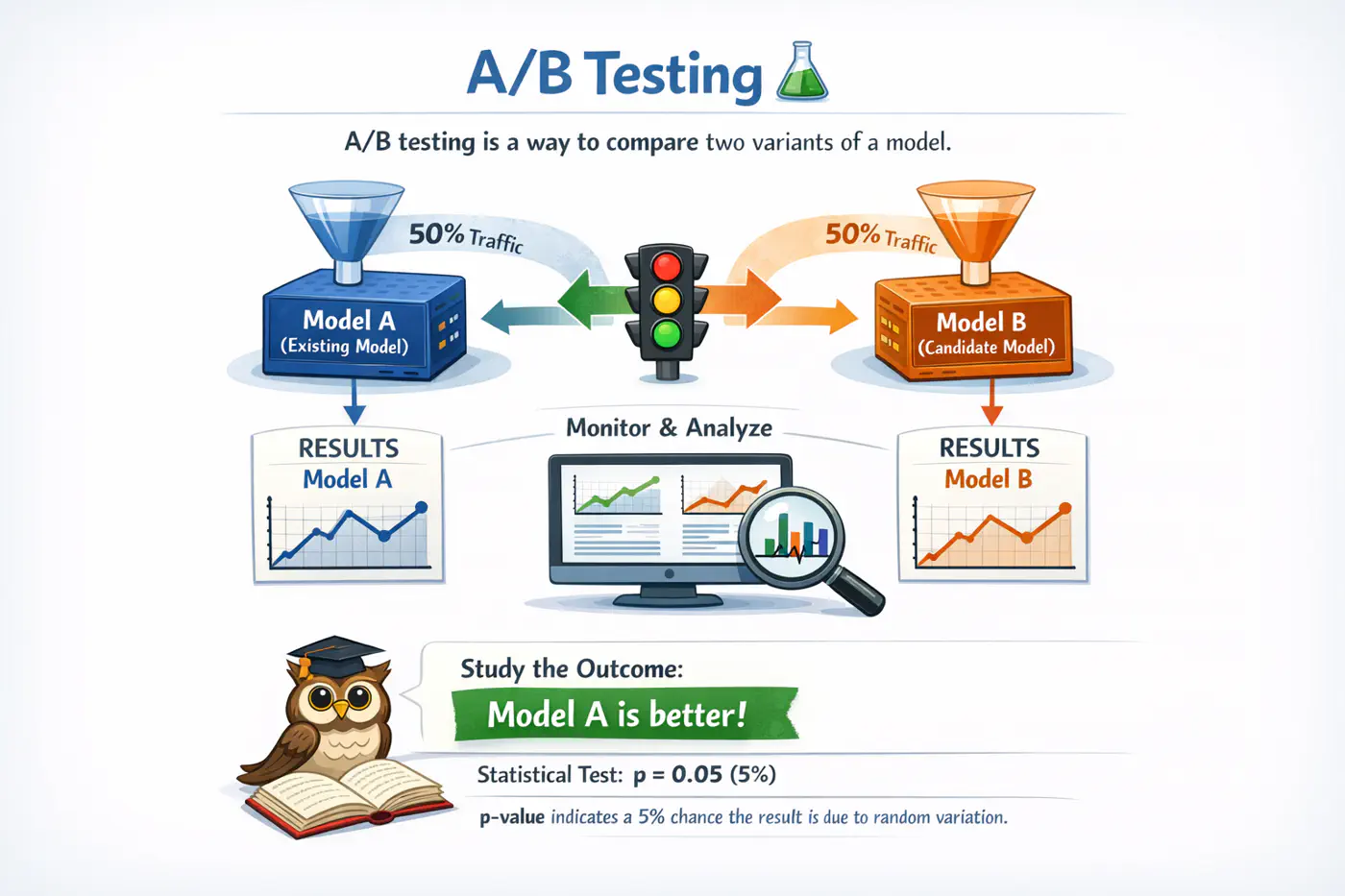

👉A/B testing is a way to compare two variants of a model.

• Deploy the candidate model in parallel with the existing model.
• A percentage of traffic🚦is routed to the candidate for predictions; the rest is routed to the existing model for predictions.
• Monitor 📺 and analyze the predictions, from both models to determine whether the difference in the two models’ performance is statistically significant.

Note: Say we run a two-sample test and get the result that model A is better than model B with the p-value of p = 0.05 or 5%.

👉 Mitigates deployment risk by incrementally shifting traffic 🚦from a model version to a new version, allowing for real-world validation on a subset of users before a full-scale rollout.

• Deploy the candidate model in parallel with the existing model.
• A percentage of traffic🚦is routed to the candidate for predictions.
• If its performance is satisfactory, increase the traffic to the candidate model.If not, abort the canary and route all the traffic🚦 back to the existing model.
• Stop when either the canary serves all the traffic🚦 (the candidate model has replaced the existing model) or when the canary is aborted.

Note: Canary releases can be used to implement A/B testing due to the similarities in their setups. However, we can do canary analysis without A/B testing.
